    Quick Start Guide

    Deploy in minutes

    Configure one tfvars file, run make apply, and integrate CognitoApi into any application.

    Prerequisites

    Before You Begin

    Before installing the CognitoApi, please ensure that you have the following tools installed

    # Install Terraform
# https://developer.hashicorp.com/terraform/install

# Install Docker
# https://docs.docker.com/get-docker/

# Install AWS CLI
# https://docs.aws.amazon.com/cli/latest/userguide/getting-started-install.html

# Install Python 3 + boto3 (used by the passkey-enable bootstrap step)
# https://www.python.org/downloads/  &&  pip install boto3
    • Terraform: A recent version is recommended, in order to deploy all the underlying AWS infrastructure.
    • Docker: To build all lambdas and their layers in an automatic way.
    • AWS CLI: To perform some of the project bootstrapping actions like creating the S3 bucket and DynamoDB table for Terraform states and collaboration.
    • Python 3 + boto3: Used by the one-time passkey-enable bootstrap step (a null_resource that turns on WebAuthn for the user pool).

    Configuration

    Configure Your Environment

    First you need to configure at least one deployment environment (e.g., dev) by filling the corresponding configuration file

    Warning: You need to configure at least one deployment environment, let's call it dev, by filling the corresponding configuration file terraform/environments/dev/terraform.tfvars.dev
    # Example terraform.tfvars.dev - the values you must set per environment.
# (The file also defines each Lambda's name / description / entrypoint / zip path;
#  those ship with sensible defaults you rarely need to touch.)

# --- AWS & Terraform state ---
aws-region = "eu-west-1"
terraform-state-bucket = "my-cognitoapi-tfstate-012345678901"
auth-microservice-terraform-state-file-key = "dev/auth-microservice.tfstate"

# --- Domain, certificate & API Gateway ---
auth-api-dns-name = "auth.dev.example.com"
auth-api-acm-certificate-name = "*.dev.example.com"
route53-zone-name = "dev.example.com"
auth-api-r53-zone-id = "Z1029992156D8O"
certificate-name-tag = "wildcard.dev.example.com"
auth-api-name = "my-auth-api"
auth-api-description = "My Authentication API"
auth-api-version = "v1"
auth-api-stage-name = "dev"
cognito-authorizer-name = "auth-cognito-authorizer"
api-cloudwatch-log-group-name = "auth-api-gw-cw-logs"
apigw-account-settings-cloudwatch-role-name = "auth-api-gw-cw-settings-role"
apigw-account-settings-cloudwatch-policy-name = "auth-api-gw-cw-settings-policy"

# --- Cognito user pool & password policy ---
user-pool-name = "authentication-api-pool"
user-pool-client-name = "apigw-client"
password-minimum-length = "14"
password-require-lowercase = "true"
password-require-numbers = "true"
password-require-symbols = "true"
password-require-uppercase = "true"
mfa-configuration = "ON"
refresh-token-validity = "1"           # days (ID/access tokens last 1 hour)
enable-token-revocation = "true"
cognito-sns-role-name = "authentication-api-pool-sns-role"
identity-pool-name = "authentication-api-idp"

# --- Email (Amazon SES) ---
cognito-ses-email-arn = "arn:aws:ses:eu-west-1:012345678901:identity/example.com"
cognito-from-email-address = "no-reply@dev.example.com"
cognito-reply-to-email-address = "no-reply@dev.example.com"
from-email = "no-reply@dev.example.com"
email-support-address = "support@dev.example.com"
email-team-name = "The CognitoApi team"
email-welcome-subject = "Welcome to The CognitoApi"
email-forgot-subject = "Reset your password"
email-mfa-reset-subject = "Reset your authenticator (MFA)"
email-mfa-reset-message = "Your MFA reset code is {code}. Enter it to set up a new authenticator app. If you didn't request this, ignore this email."
new-user-email-message-template-file = "email_templates/user_invitation_email_dev.html"

# --- Runtimes ---
auth-lambdas-runtime = "python3.13"
auth-lambdas-timeout = "30"
auth-lambdas-memory-size = "256"
custom-message-lambda-runtime = "nodejs22.x"
custom-message-lambda-timeout = "10"
custom-message-lambda-memory-size = "256"

# --- Passkeys / WebAuthn ---
# The relying-party ID MUST match the host that serves your frontend.
# Use "localhost" for local dev, or your real domain in production.
webauthn-relying-party-id = "dev.example.com"
passkey-bootstrap-python = "python3"

    Configuration Parameters:

    aws-region

    The region where to deploy your authentication API.

    terraform-state-bucket

    This S3 bucket will hold your terraform states files. We are expecting a name and the IAC will create this bucket and use it.

    auth-api-dns-name

    This is the dns to use for your API, for example: auth.dev.thecadors.com.

    auth-api-acm-certificate-name

    This is the domain name for which the certificate should be issued, for example: *.dev.thecadors.com.

    route53-zone-name

    The route 53 zone id that will be used for the domain name of your API, for example: dev.thecadors.com

    certificate-name-tag

    The tag name that will be set for the ACM certificate used by your API, for example: wildcard.dev.thecadors.com.

    auth-api-name

    The authentication API name, for example: thecadors-auth-api.

    auth-api-description

    The authentication API description, for example: TheCadors Auth API.

    auth-api-r53-zone-id

    The route53 zone ID to use (corresponding to route53-zone-name), for example: Z1029992156D8O.

    auth-api-stage-name

    The API Gateway stage name to use, for example: dev.

    user-pool-name / user-pool-client-name

    Names for the Cognito user pool and its app client.

    password-minimum-length & password-require-*

    Password policy. Defaults to 14 chars requiring lowercase, uppercase, numbers and symbols.

    mfa-configuration

    MFA enforcement. Set to ON to make TOTP MFA mandatory for every user.

    refresh-token-validity & enable-token-revocation

    Refresh-token lifetime in days (e.g. 1 = 24 h; ID/access tokens last 1 hour) and whether tokens can be revoked.

    identity-pool-name

    Name of the Cognito Identity Pool used to exchange JWTs for scoped AWS credentials.

    cognito-ses-email-arn

    ARN of the verified SES identity used to send emails, e.g. arn:aws:ses:eu-west-1:012345678901:identity/example.com.

    cognito-from-email-address / reply-to / from-email

    Sender and reply-to addresses for account emails (must belong to the verified SES identity).

    email-welcome-subject / email-forgot-subject

    Subjects for the welcome (temporary password) and forgot-password emails.

    email-mfa-reset-subject / email-mfa-reset-message

    Subject and body of the MFA-reset recovery email. Use {code} as the placeholder for the recovery code.

    auth-lambdas-runtime / custom-message-lambda-runtime

    Runtimes for the Python endpoint handlers (e.g. python3.13) and the Node.js custom-message trigger (e.g. nodejs22.x).

    webauthn-relying-party-id

    Passkey relying-party ID. Must match the host serving your frontend - localhost for local dev, your domain in production.

    The file also contains a name, description, entrypoint and zip-source path for each Lambda function - these are pre-filled and rarely need changing. Seeterraform/environments/dev/terraform.tfvars.dev in the repo for the full, ready-to-edit file.

    Installation

    Deploy the Infrastructure

    Process of installing and deploying CognitoAPI

    export AWS_PROFILE=MyAwsDevProfile
git clone https://github.com/TocConsulting/cognito-api.git
cd terraform
# Create your env config from the template (the real file is gitignored)
cp environments/dev/terraform.tfvars.dev.example environments/dev/terraform.tfvars.dev
# ...then edit terraform.tfvars.dev with your own values
ENVIRONMENT=dev make test
ENVIRONMENT=dev make plan
ENVIRONMENT=dev make apply

    The commands above will:

    • Set up your AWS profile by exporting it inside the terminal, please change the name of the profile MyAwsDevProfile to yours and set it also inside the file terraform/live/services/auth-microservice/provider.tf.
    • Create your environment config from the committed template (terraform.tfvars.dev.example → terraform.tfvars.dev) and fill in your own values. The real tfvars file is gitignored, so your account IDs and domains never get committed.
    • Test the terraform infrastructure files.
    • Perform a terraform plan to check if everything is okay and gives you an idea about all resources that will be deployed.
    • Perform a terraform apply to deploy all the needed infrastructure inside your AWS account.

    Need More Help?

    Please refer to the Makefile help for more detailed commands and options.

    API Usage

    Authentication Requirements

    The endpoints take no API key. Calls only send the inputs each endpoint documents, plus an Authorization: Bearer token where a signed-in user is required. Before exposing the API publicly, protect the unauthenticated endpoints at the edge (AWS WAF rate-limiting + API Gateway throttling) to guard against abuse and "financial DDoS" - an API key would not have stopped that anyway, since it is visible in every browser request.

    Postman Collection Setup

    You can find a Postman collection at postman/CognitoApi.postman_collection.json

    You need to set the following variables inside Postman:

    API_BASE_URL

    The DNS name to use to call your auth API.

    EMAIL

    The email of the user you want to create.

    PASSWORD

    The password to use when you create a test user.

    VerificationType

    Must be set to SOFTWARE_TOKEN_MFA.

    Note: The TOTP inside Postman is generated for you automatically using the MFA_SECRET environment variable, which is set from the API call output, once the user has been confirmed.

    Let's see how this API works:

    A walkthrough of the core sign-up and sign-in flow. The API has 23 endpoints in total - password recovery, self-service MFA reset, passkeys and admin actions are all in the full API Reference.

    Create a new user

    Use a POST method on the endpoint: v1/users

    {
    "full_name": "Tarek CHEIKH",
    "email": "tarek@tocconsulting.fr",
    "mobile_phone_number": "+3301234567"
}

    You will get an answer that looks like this:

    {
    "email": "tarek@tocconsulting.fr",
    "user_id": "129514d4-b081-7004-e470-b6adacd32db4",
    "status": "CREATED"
}

    After this call the new user will receive an email containing a temporary password, that they need to use with the endpoint: v1/users/{{user_id}}/confirm to confirm the creation.

    Confirm a new user

    Use a POST method on the endpoint: v1/users/{{user_id}}/confirm

    {
    "email": "tarek@tocconsulting.fr",
    "temporary_password": "WpbyHbcIc#pNo3",
    "new_password": "WpbyHbcIc#pNp9"
}

    You will get an answer that looks like this:

    {
    "email": "tarek@tocconsulting.fr",
    "user_id": "129514d4-b081-7004-e470-b6adacd32db4",
    "qr_code_secret": "UB42J65BKO473DIOOXGWOQZYT7AZKAS7W3AAHVTVT5IPRV",
    "otpauth_uri": "otpauth://totp/CognitoApi%3Atarek%40tocconsulting.fr?secret=UB42J65BKO473DIOOXGWOQZYT7AZKAS7W3AAHVTVT5IPRV&issuer=CognitoApi",
    "mfa_session": "AYABeLHXhcXCnAA3E29UUMbVqKgAHQABAAdTZXJ2aWNl...",
    "status": "PENDING_MFA"
}

    Confirm the MFA

    Use a POST method on the endpoint: v1/users/{{user_id}}/confirm-mfa

    {
    "email": "{{EMAIL}}",
    "otp": "123456",
    "mfa_session": "{{MFA_SESSION}}"
}

    You will get an answer that looks like this:

    {
    "email": "tarek@tocconsulting.fr",
    "user_id": "129514d4-b081-7004-e470-b6adacd32db4",
    "mfa_status": "CONFIRMED"
}

    For a forgotten password

    Use a POST method on the endpoint: v1/forgot-password

    {
    "email": "tarek@tocconsulting.fr"
}

    You will get an answer that looks like this:

    {
    "email": "tarek@tocconsulting.fr",
    "user_id": "129514d4-b081-7004-e470-b6adacd32db4",
    "status": "PASSWORD_FORGOT_CONFIRMATION_SENT"
}

    To set a forgotten password

    Use a POST method on the endpoint: /v1/users/{{user_id}}/confirm-password

    {
    "email": "tarek@tocconsulting.fr",
    "new_password": "#Y3KdGR9QKg_a9",
    "verification_code": "304482"
}

    You will get an answer that looks like this:

    {
    "email": "tarek@tocconsulting.fr",
    "user_id": "129514d4-b081-7004-e470-b6adacd32db4",
    "status": "NEW_PASSWORD_SET_SUCCESSFULLY"
}

    Email Notifications

    The authentication API sends automatic emails to users during the account management process. Below are examples of the emails users will receive when creating an account and resetting a password.

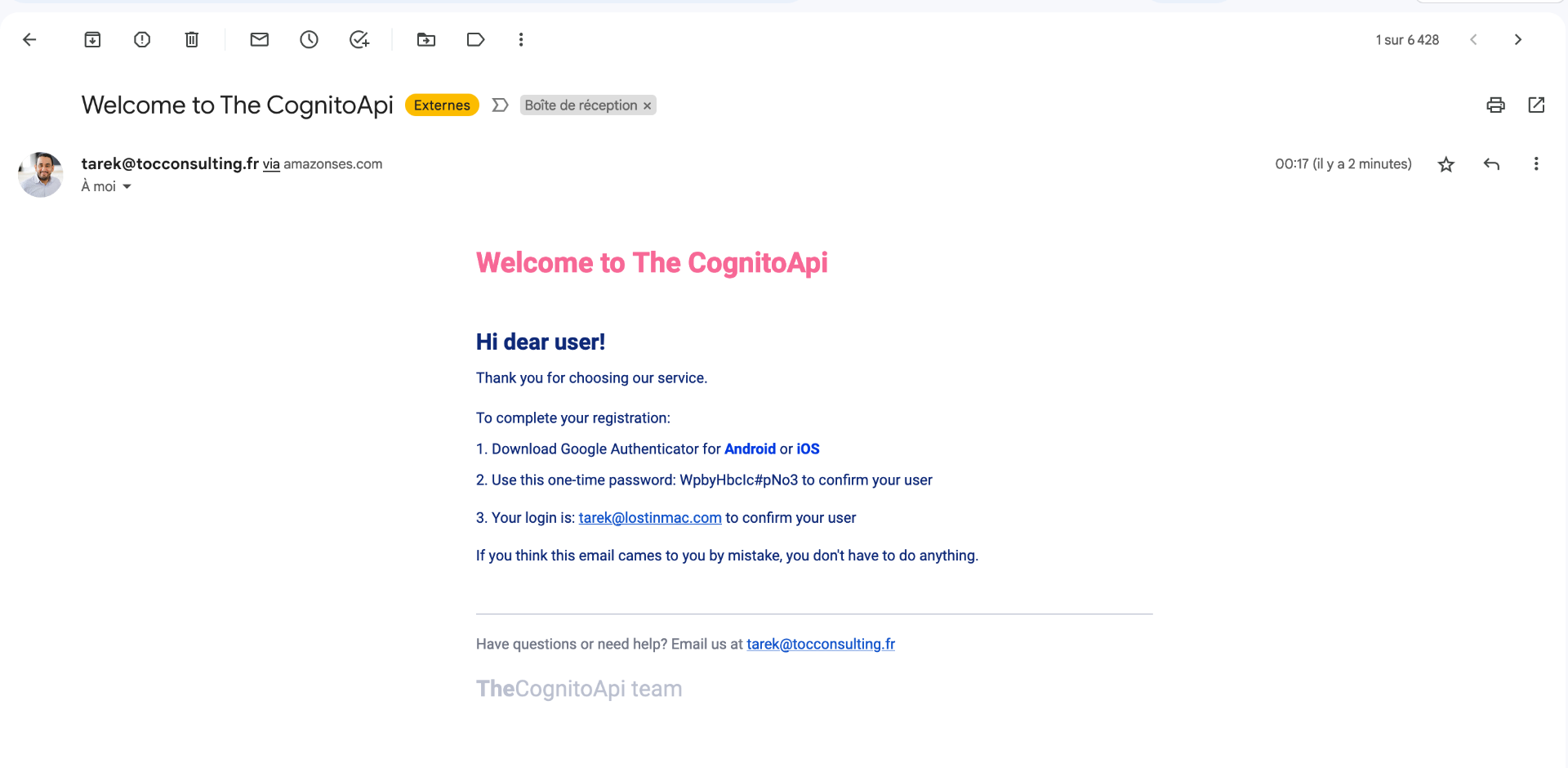

    New User Welcome Email

    Sent after creating a new user account

    Welcome email example with temporary password

    Key Components:

    • Welcome message and service introduction
    • Instructions to complete the registration process
    • Temporary password for initial login
    • MFA setup instructions (Google Authenticator)
    • Support contact information

    Note: These emails are sent through Amazon SES via a Cognito custom-message Lambda trigger (and, for the MFA-reset code, the recovery Lambda). Subjects, sender, team name and the MFA-reset body are all configured in your terraform.tfvars; the welcome email uses the HTML template under email_templates/.

    Ready to explore the API?

    Now that you're familiar with getting started, check out the complete API reference.
